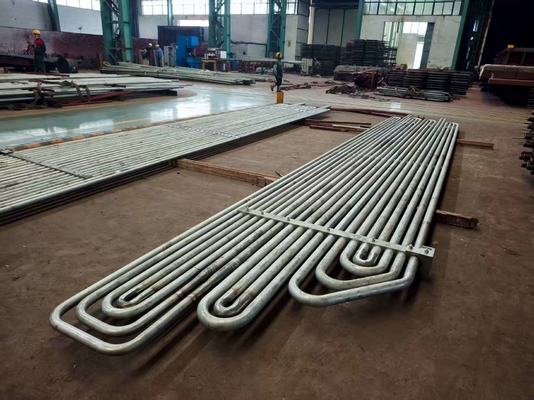

Natural Circulation Superheater Reheater for Power Station Boilers
Detalhes do produto
| Tipo: | Circulação natural | Aplicativo: | Manutenção de caldeiras, tubos de caldeiras, elementos de aquecimento |
|---|---|---|---|
| Material: | Aço inoxidável | Utilização: | Industrial, central elétrica, central elétrica térmico/caldeira da estação |
| Cor: | Personalizado | Combustível: | Biomassa, Resíduos |
| Inspeção: | Inspeção de ASME | Estilo: | Horizontal e Vertical |
| Destacar |
natural circulation superheater,power station boiler reheater,superheater reheater with warranty |
||
Descrição do produto
| Attribute | Value |
|---|---|
| Type | Natural Circulation |
| Application | boiler maintaince, Boiler Pipe, Heating element |
| Material | Stainless steel |
| Usage | Industrial, Power Station, Thermal power plant/station boiler |
| Color | Customized |
| Fuel | Biomass, Waste |
| Inspection | ASME Inspection |
| Style | Horizontal and Vertical |
Superheater handles saturated steam; reheater processes partially expanded steam.
Use for heating saturated steam, steam temperature could be up to 900 degree C.
Superheater Capacity Upgrades to Increase Power Generation
Send us required technical data, such as steam capacity, pressure, required temperature etc. We will design accordingly.
| Type | Advantages | Disadvantages | Supporting method |
|---|---|---|---|
| Pendant-type | 1. Firm structural support | 1. Flow blockage by condensed steam 2. Needs a slow restart to purge the water that accumulates in the bottom. |
supported from above |
| Inverted-type | 1. Proper drainage of the condensed steam | 1. Lack the structural rigidity, especially in high speed gas flow | Supported from below |
| Horizontal-type | 1. Proper drainage 2. Good structural rigidity. |
1. They do not view the flame directly so they are mainly from the convective type | Usually supported in the vertical gas ducts parallel to the main furnace. |
- Principle of superheater is similar to steam generating tubes of boiler.
- The hot gases at high temperature sweep over superheater tubes and raise the temperature of steam which magnitude depends upon exit gas temperature leaving the superheater and gas velocity.
