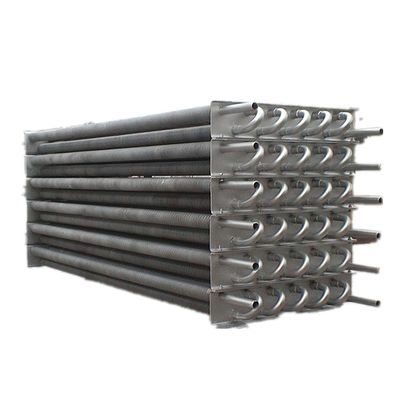

Power Station CFB Boiler Economizer with ASTM Certification for Central Heating
Detalhes do produto
| Tipo: | Circulação natural | Estrutura: | Tubos de incêndio e de água |
|---|---|---|---|
| Pressão: | Baixo/de alta pressão | Estilo: | Vertical |
| Combustível: | Carvão / Gás / Combustível a carvão / aquecimento por água | Saída: | Água quente/vapor |
| Peso: | 20000 kg | Tratamento de superfície: | Pintado |
| Tubo nua od: | 25-1650 mm | Espessura do tubo nu: | 2-40 mm |
| Espessura da barbatana: | 00,6-3,0 mm | Altura da barbatana: | 5-30 mm |
| Caminho do tubo de barbatana: | 5-30 mm | Comprimento do tubo de barbatana: | ≤12000 mm |
| Material: | Aço carbono, liga, aço austenítico | ||
| Destacar |
ASTM Certification Boiler Economizer,Central Heating CFB Boiler Economizer,Power Station Boiler Economizer |
||
Descrição do produto
| Parameter (Unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
- Impact test and strength calculation reports with complete materials documentation
- 100% NDT (non-destructive testing) of all steel plates, tubes, and electrodes
- Comprehensive weld inspection including X-ray, γ-ray, and liquid penetrant testing
- Hydraulic pressure testing to verify working pressure standards and safety
Destaques do produto
Power Station CFB Boiler Economizer Central Heating ASTM Certification Product Overview The economizer is a mechanical heat exchange device designed to reduce energy consumption by preheating fluids. This unit is specifically engineered for power station CFB (Circulating Fluidized Bed) steam boiler ...
