Customized Sized Boiler Membrane Wall 3mm Thick 500mm Wide Boiler Parts

Quantidade mínima: 30 toneladas
preço: negociável
embalagem padrão: Embalagem de ferro
Período de entrega: No prazo de 95 dias a contar da recepção do DP ou do L/C
método de pagamento: L/c, t/t
Capacidade de abastecimento: 600 TONELADAS POR O MÊS
Informações pormenorizadas
Descrição do produto
Informações pormenorizadas
Lugar de origem
Zhangjiagang, China
Marca
HD BOILER
Certificação
ISO9001 , EN3834 , ASME , BS, Grade A
Número do modelo
MWWPO1229
Cor:
Personalizado
Técnica de produção:
Flexão do painel
Nível de fabricação:
Norma ASME
Gama de aplicações:
Caldeiras a carvão
Estrutura:
Parede de membrana
Dimensão do tubo:
60mm*6mm
Descrição do produto
Customized Sized Boiler Membrane Wall 3mm Thick 500mm Wide Boiler Parts
Product Description
Water walls are heating components composed of multiple rows of steel pipes vertically arranged along the inner wall of boiler furnaces. They absorb high-temperature flame radiation heat to evaporate the working fluid inside the pipes while reducing furnace wall temperature. Available in three structural types:
  • Light tube type: Parallel-arranged seamless steel pipes
  • Membrane type: Welded fin sealed tube screens
  • Piercing tube type: Pin-installed pipes for refractory material application and heat absorption regulation
These components serve dual functions: initially for furnace cooling, now as core heat absorption elements capable of absorbing 40-50% of furnace heat in large boilers. Subcritical and higher parameter boilers require internally threaded pipes or Cr-Mo alloy steel pipes. Proper maintenance is essential to prevent external dust/slag accumulation and internal scaling, which can reduce heat transfer efficiency or cause pipe bursts. DC boiler water-cooled walls may use vertical tube screens or spiral tube coil structures, adaptable to varying heat loads through pipe diameter and material adjustments.
Key Advantages
  • Ensures furnace wall tightness, reducing combustion chamber air leakage
  • Fully water-cooled combustion chamber prevents coking during intense combustion
  • Low heat storage capacity enables rapid heating/cooling, shortening boiler start-up/shutdown cycles
  • Pipe-laying furnace wall design reduces boiler frame load and simplifies suspension
  • Enhanced heat absorption capacity compared to plain tubes
  • Improved pre-assembly capability reduces installation workload

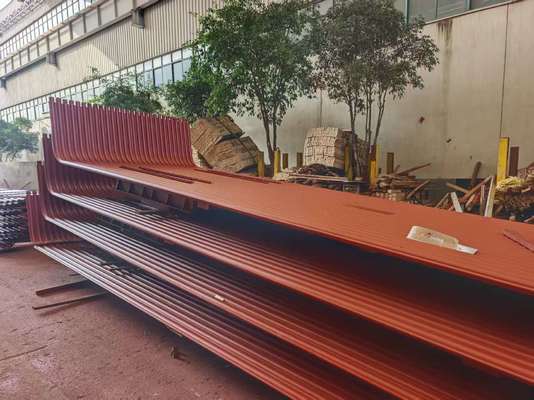

Customized Sized Boiler Membrane Wall 3mm Thick 500mm Wide Boiler Parts 0
Applications
Our HDB Membrane Wall works as a boiler wall separator, and it’s really good at standing up to impacts. It does a solid job of dividing the boiler walls effectively.
It’s made from stainless steel, with a pressure rating of 0.2MPa and a length of 1000mm. The bolt connection system it uses makes installation quick and easy—no complicated steps needed.
This setup helps lower the risk of boiler wall damage from high temperatures and pressure. On top of that, it offers great sealing and insulation, which means less energy gets wasted.
Customization Options
The HDB Boiler Membrane Wall features 3mm thickness, 500mm width, and polished surface finish, offering exceptional impact and heat resistance for diverse applications. This versatile solution is ideal for boiler wall separation requirements across various industrial settings.
Packaging & Shipping
Each Boiler Membrane Wall ships in protective cardboard packaging with:
  • Thick bubble wrap or equivalent protective wrapping
  • Secure box sealing with reinforced tape
  • Clear content labeling including weight and destination
  • Fragile handling indicators
  • Secondary shipping box for added transit protection
Manufacturer Profile
Hua Dong Boiler Co., Ltd. (established 1985) operates two manufacturing facilities spanning 400,000m² with $110 million USD in fixed assets. Our 1,100 employees include 150 technicians and 600 certified welders. Certifications include:
  • Chinese Grade A boiler and pressure vessel manufacturing licenses
  • ASME "S", "U", and "NB" stamps
  • ISO9001, SO3834, and EN12952 Quality Management Systems
